I. Performance Specifications
-

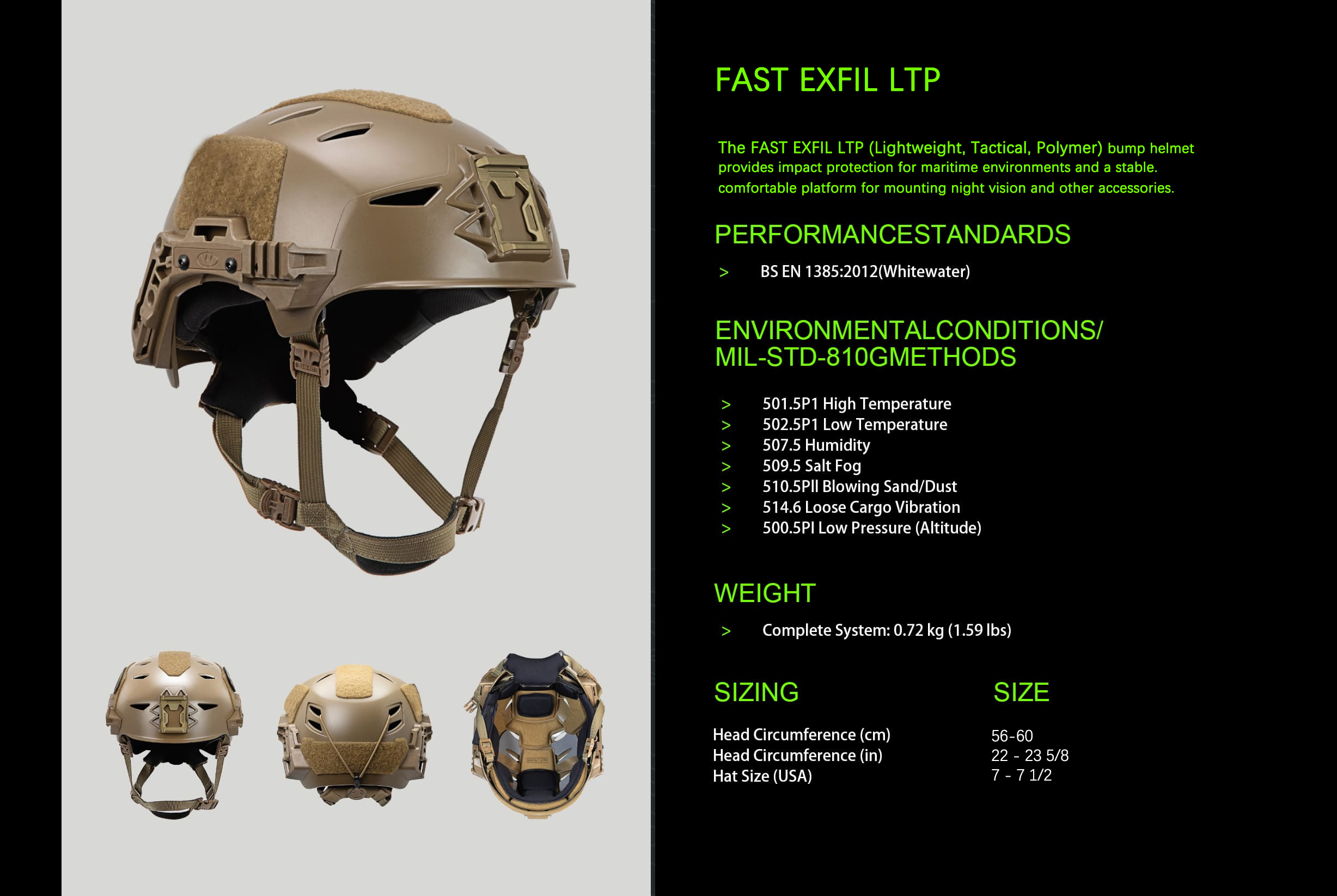

Compliance: Conforms to BS EN 1385:2012, ACH CO/PD 05-04:2007, and PS-1145.
-
Blunt Impact Protection: Maximum 150G (at 10 ft/s).
-
Maximum Allowable Indentation: 0.023 ''.
-
Compression Test:
-
Top-to-Bottom: 0.020 '' (0.51 mm) @ 400 lbs (181.44 kg)
-
Lateral: 0.125 '' (3.18 mm) @ 300 lbs (136.08 kg)
-
-
Environmental Compatibility:
-
Storage and Operating Temperature: Ambient, Low -60°F (-51°C), High +160°F (71°C)
-
Tested for temperature shock, flame resistance, altitude, seawater, chemical agents and weatherometer .
-
II. Shell Construction and Design
-
Material: ABS Plastic.
-
Geometry: FAST.
-
Cut Style (Side Protection): High Cut.
-
Color Options: Camouflage , Soil , Black , Army Green.

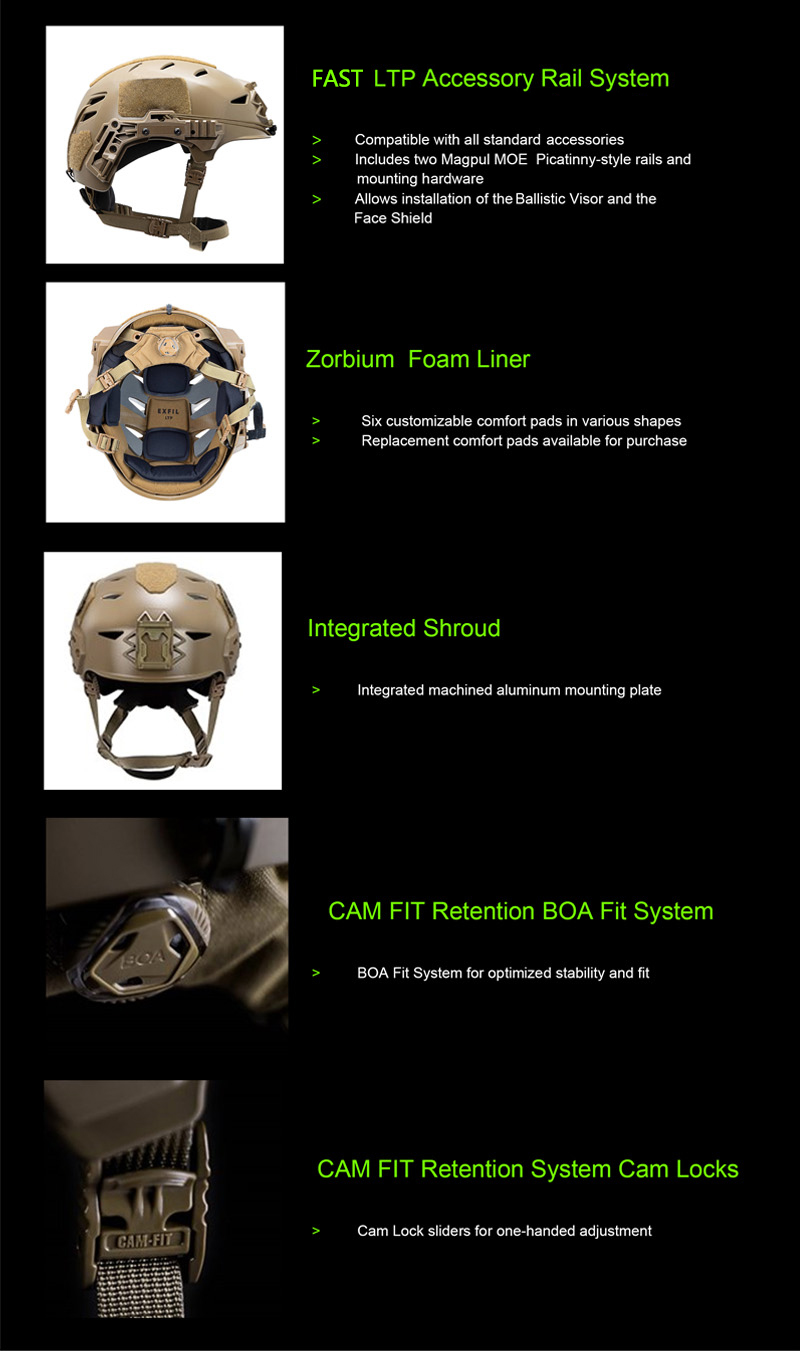

III. Core Technical Features
-
Zorbium Foam Liner: Provides excellent shock absorption and is compatible with overhead communication headbands.
-
CAM FIT Retention System: Features an easily adjustable Cam Lock slider.
-
BOA Fit System: Enables quick, micro-adjustments to accommodate individual head shapes.
-
Wilcox Shroud (Lanyard Compatible): Securely attaches any standard Night Vision Device (NVG) mount.
-
EXFIL Rail 2.0 Accessory System: Fully compatible with all EXFIL accessories.
-
Note: The NVG mount/interface required for attaching night vision devices to the EXFIL LTP helmet is not included.
-


IV.Weight and Dimensions

| Size | Head Circumference (in) | Head Circumference (cm) | Hat Size | lbs | kg |
|---|---|---|---|---|---|
| Size 1 (M/L) | 20 1/2 - 22 3/4 | 52 – 58 | 6 5/8 – 7 1/8 | 1.66 | 0.75 |
| Size 2 (L/XL) | 22 - 24 3/4 | 56 - 63 | 7 - 7 3/4 | 1.68 | 0.76 |
PLEASE NOTE: If you are in between sizes, we recommend going up to the larger size. You can customize the fit with the comfort pads that are included with your helmet purchase. If more pads are needed, we sell additional comfort pad sets.
